9060UF / 9060UF Pro



TechJet delivers precision UV inkjet printing equipment and comprehensive

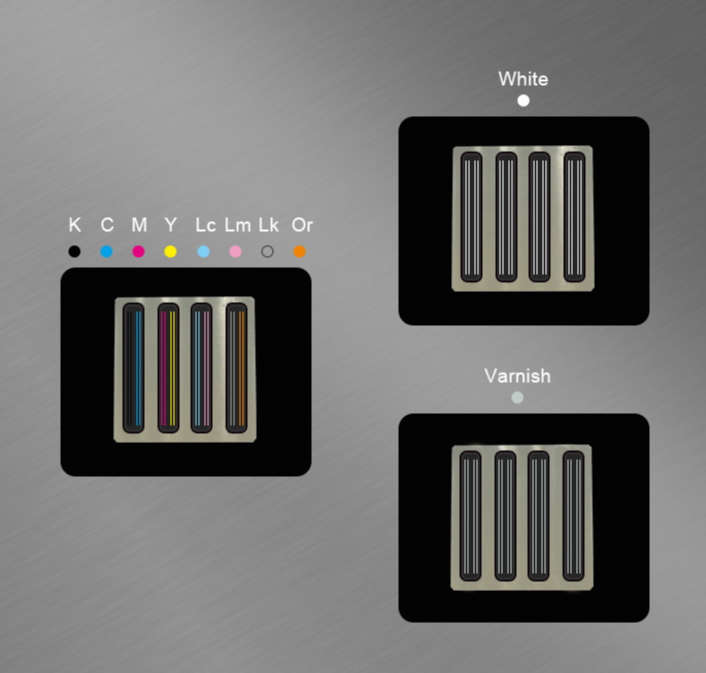

  • 3-head staggered arrangements

    Equips 3pcs latest Epson printheads, ensure high-precision and amazing image quality output to meet your needs.

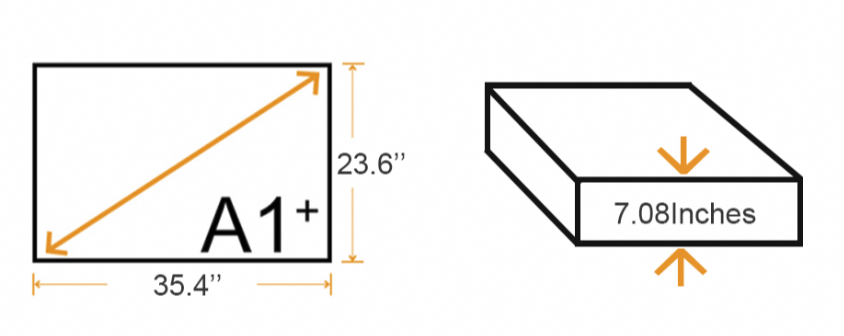

    Print Area and Print Height

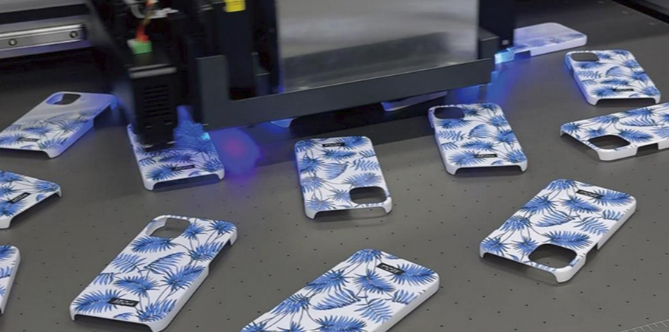

    The max print area is 900mm×600mm(35.4" X23.6") and the max object height is 180mm(7.08") bring more possibilities for various promotional products business.

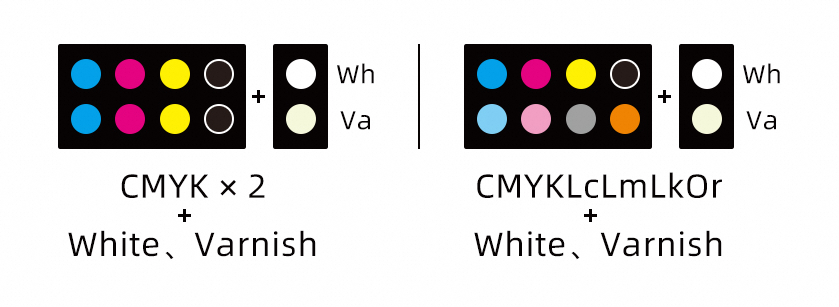

    4 colors or 8colors Plus White and varnish

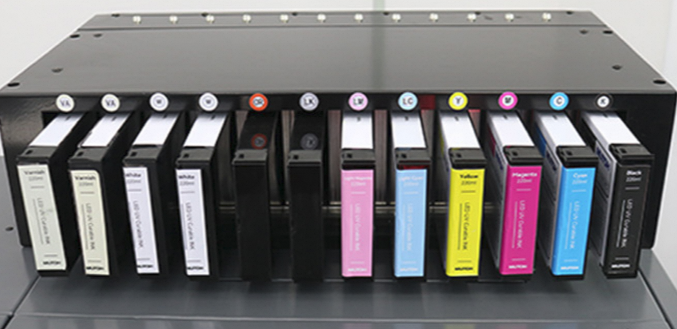

    Reliable and stable ink supply method

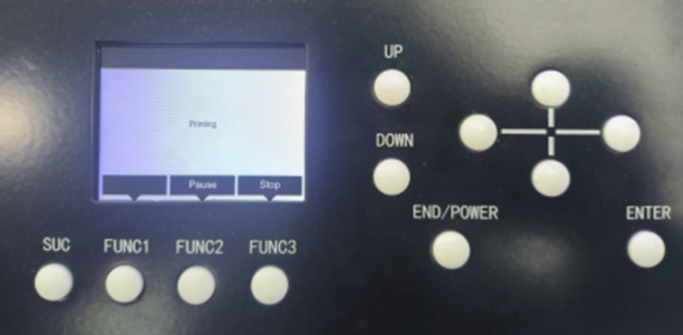

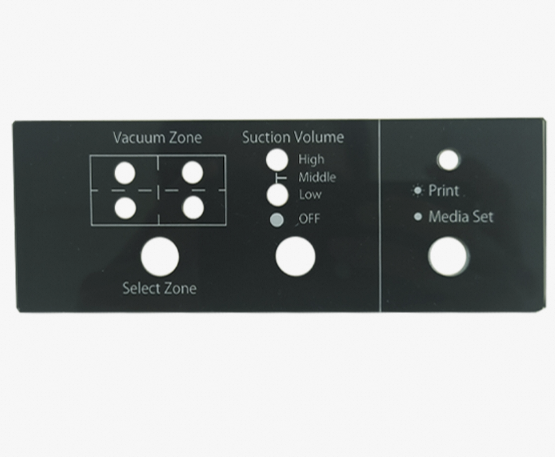

    Convenient and friendly control panel

    It enables you to access the most used functions:

    • nozzle check and head cleaning

    • Automated and manual flatbed height adjustment.

    • Flat Bed movement backward and forwar simple and convenient

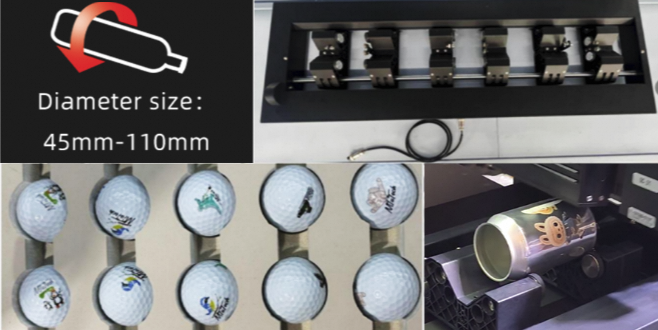

    Rotating printing kit(Optional)

    No longer being limited to flat object printing. It can also provide satisfactory print results on irregular surfaces such as cylinders, whether in terms of printing speed or the printing quality.

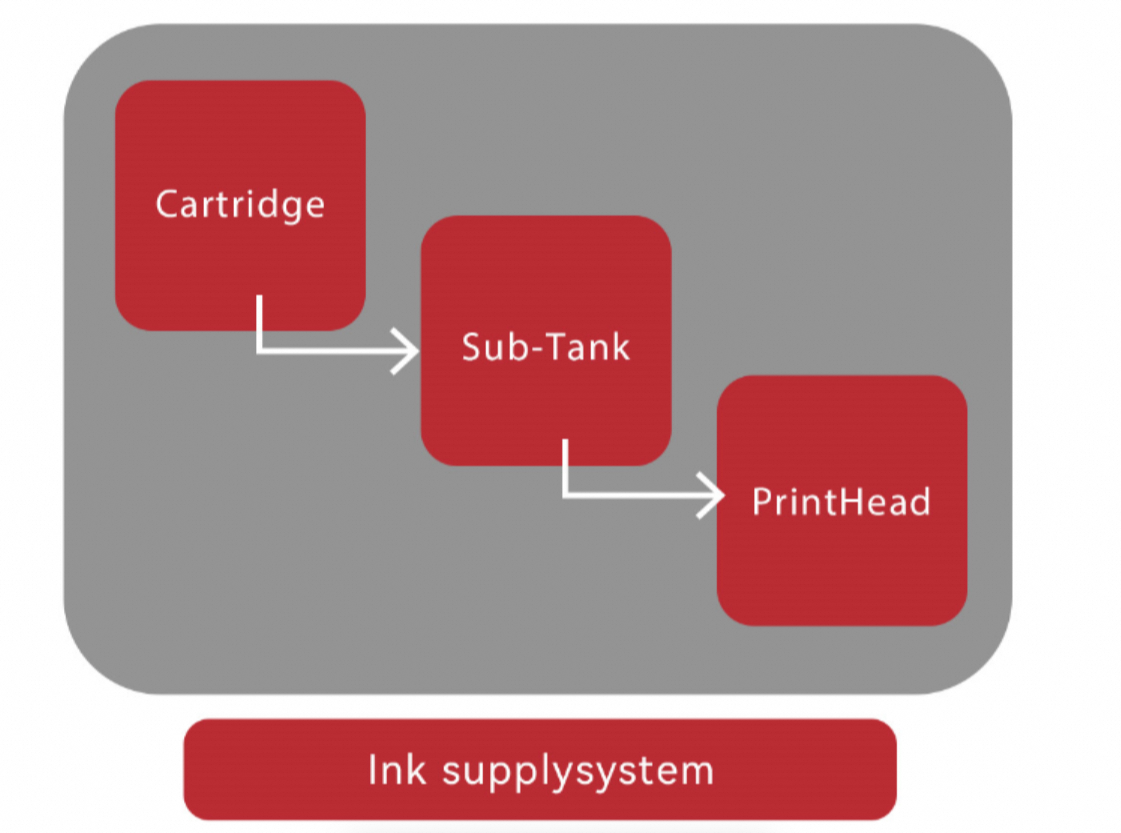

    Optimized Continuous Ink Supply System

    Continuous ink supply system (CISS) help to reduce frequent addition of ink. White ink circulation system and ink shortage warning system play a great role to create optimal ink flow and minimized maintenance.

    VisualPositioningTechnology (Optional)

    Equipped with advanced cameras and image recognition algorithms, it automatically detects material position and pattern information, achieving precise alignment with an error margin of less than 0. 1mm.

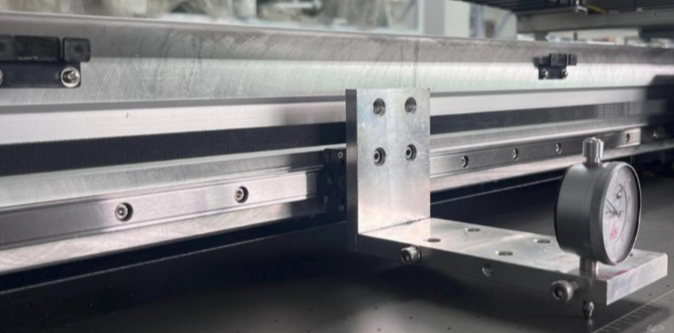

    Integrated Aluminum Frame

    We features integrated aluminum frame for this model. It ensures high precision, help reduce weight of the whole machine, Strictly control the precision error of the printing platform. and also makes the 9060UF / 9060UF Pro more durable than other printers.

  • 9060UF Series
    Model TJ-9060UF 9060UF PRO
    Number of printhead 3 3
    Print colors of Numbers 4 8
    Ink Colors CMYK+Wh+Va CMYKLcLmLkOR+WH+VA
    Printing area 9000X600mm
    Max Media Height 180mm
    Cylinder Diameter 110mm
    UV Curing System LED
    Lifting Functionality Auto
    platform adsorption Vacuum
    Print Resolution 720/1200/1800/2400
    Power Voltage 110/220V
    System of Control Win/10/Win11
    RIP Software FlexSin ONYX
    Printing Environment Temperature 20-28
    Graphic Format Humidity 40%--60%
    Printer dimension(LxWxH) 2000x1350x1200
    Net Weight 230KG
    option Rotary attachment
