3300VersaUV

3.3 meters large format high quality high spped versatility UV printer

3300VersaUV

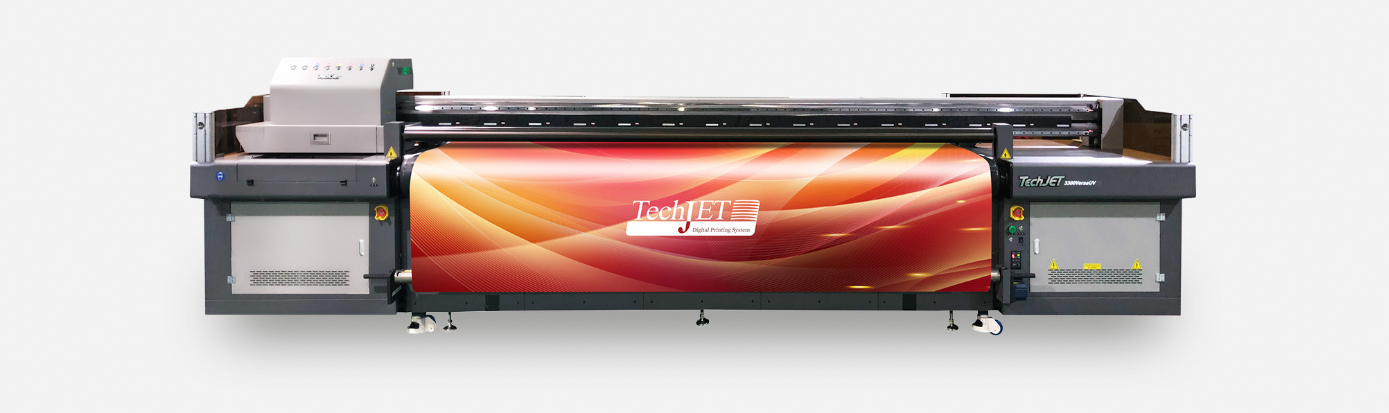

The TechJet 3300VersaUV is a multi-functional UV printer with a maximum printing material width of 3300mm and theoretically unlimited printing length. The machine can print on roll materials, and with the addition of front and rear platforms, can also print on rigid substrates, which is why we call it a multi-functional UV printer. The main highlights of the machine are its stability and Price-Performance

Outstanding image performance

The 3300VersaUV is equipped with Konica Minolta KM1024A industrial printheads, delivering a minimum dot size of just 6pl for precise and consistent jetting performance. The intelligent control software supports three-level variable dot technology, enabling smooth and natural grayscale output with richer, more refined color transitions.

Excellent productivity

The 3300VersaUV can be configured with up to three rows totaling 22 printheads, dramatically expanding the printing width and significantly increasing productivity while maintaining high image quality ideal for high-volume, high-efficiency industrial printing applications.

High stability

The 3300VersaUV designed for stability and reliability, the 3300VersaUV features a dual negative-pressure ink system for consistent ink supply and a multi-stage media feed system for smooth, even material handling. Whether running long continuous jobs or high-speed large-format printing, it delivers exceptional stability and uniform, high-quality output perfect for industrial-scale, high-volume production.

Wide range of applications

The 3300VersaUV printer handles a diverse range of materials with ease. from advertising signage, exhibition panels, lightboxes, PVC sheets, acrylic, glass, wood, and metal, to personalized gifts and custom decorations, it delivers vivid, high-definition images every time. with industrial-grade performance and precise printing, the 3300VersaUV printer is ideal for outdoor advertising, commercial displays, packaging, home decoration, and custom projects, enabling efficient, flexible, and versatile production.

A wide field applications

With an optional rotary kit, it can print on cylindrical objects.

Ceiling soft film

Inkjet fabric commercial

Lightbox commercial

Decoration painting

Car wrapping

Outdoor large format advertising

Get a quote

Whether you want to learn more about our products or need a customized solution, our expert team is here to support you.

Phone

Content *

Main Performance

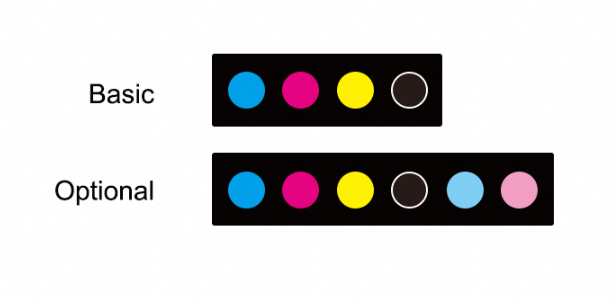

Basic Color Configuration: CMYK

Optional Color Configurations:CMYKLcLm More optional depend Custom Demand

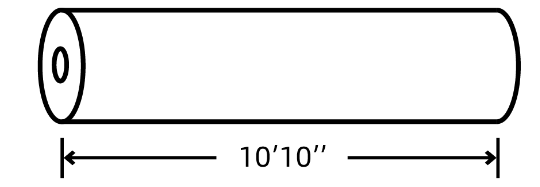

Maximum printing width: 3300mm(10'10")

It meets the requirements of most customers for large-format advertising printing.

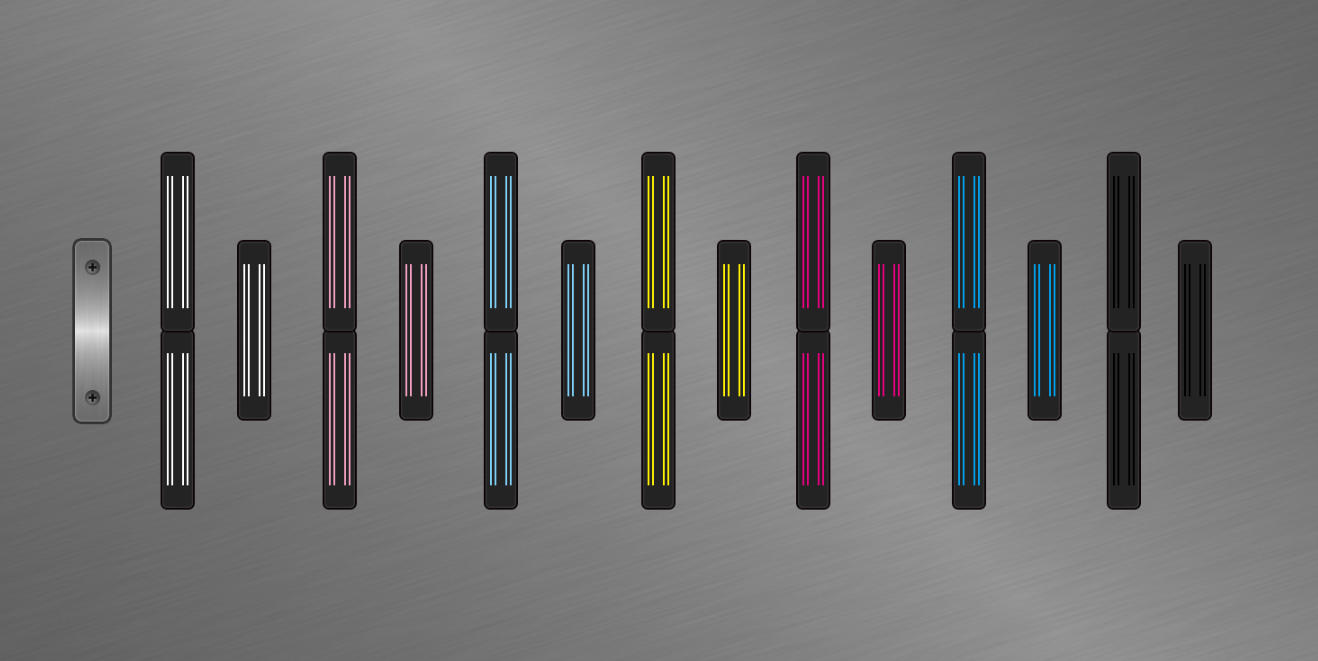

Equipped with three rows of Konica Minolta 1024A printheads, it significantly increases productivity while ensuring high precision.

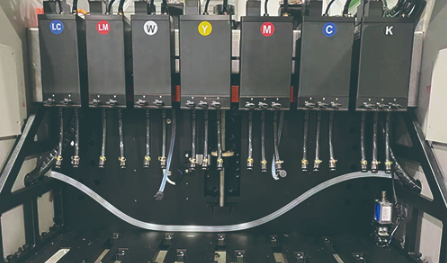

The dual negative-pressure ink path control system ensures stable ink supply and consistent print quality. The large-capacity secondary ink tank allows continuous operation even when the main ink tank is low, preventing interruptions. The intelligent voice alert system notifies users of ink status in real time, making operation more convenient, reliable, and efficient.

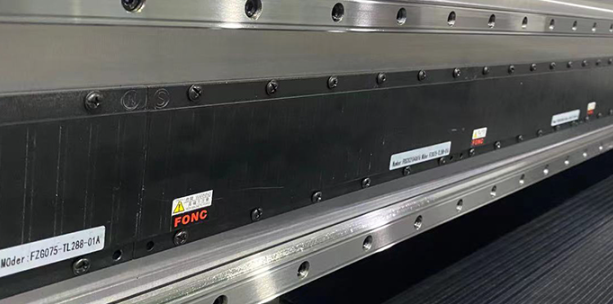

The metal grating paired with a linear motor empowers the carriage with both high speed and precise stability; the dual guide rail structure combined with a professional towline layout ensures long-lasting and reliable operation.

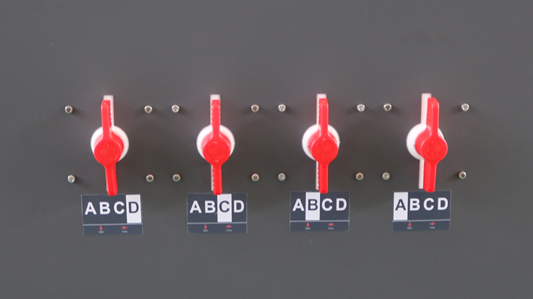

The four-zone independently controlled negative pressure platform allows the suction areas to be adjusted according to the size of the printing media, ensuring the media remains flat and stable at all times.

Specifications

Model		3300VersaUV
Carriage moving approach		Linear Motor
Print head		Konica Minolta 1024a
Basic and max number of printheads		4 - 22
Maximum printheads number		22
Max row of printheads		3
Used ink		TechJet F2-1000
Colors range		4 Colorsx3=CMYKx3
		6 Colorsx3=CMYKLcLmx3
		4 Colorsx2 +White =CMYKx2+White
		6 Colorsx2+White =CMYKLcLmx2+white
		4 Colors +White+Varnish
		6 Colors +White+Varnish
Print mode	Print resolution	Double-rows head printing speed	Color white printing speed		Color white color printing speed (Three-rows printheads)
Draft Mode	4Pass-726×720	81㎡/h	81㎡/h		40.5㎡/h
Standard mode	4Pass-726×720	42.42㎡/h	42.42㎡/h		21.21㎡/h
Quality Mode	6Pass-726×1080	28.4㎡/h	28.4㎡/h		14.2㎡/h
High quality mode	8Pass-726×1440	21.4㎡/h	21.4㎡/h		10.7㎡/h
Print Media	Media	Roll media		Flat media
	Max Print size	3300mm		3200×1300mm
	Thickness	1-1.5mm		1-30mm
RIP Software		ONYX、PhotoPrint、Caldera（Optional）
Data interface		USB3.0
Ink supply method		Vacuum negative pressure, continuous ink supply
Curing Method		Dual UV-LED Lampes
Printer weight		2700kg
Dimension (W x D x H)		5620mm×1460mm×1630mm
Front and back printing platform（optional accessories）		3500mm×565mm
Power requirement		AC220V±10%，≥32A，50/60HZ
Maximum power		7000W
Printable environment		Temperature 20-30 °C, humidity 40%-60%RH (non condensing)
Remark The above printing speed is the measured printing speed. The power consuption basicis on standby and normal print. *The printing speed basis just 4 colors and 6 colors model not involved the white and varnish.
